FTP water tank

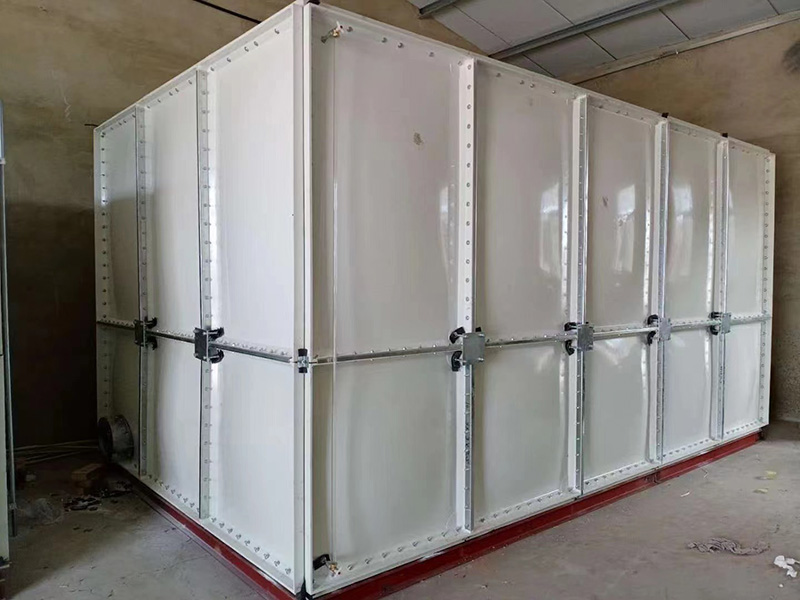

The entire sunrise FTP water tank is assembled from SMC water tank plates. Its characteristic is the use of food grade resin, resulting in good water quality, cleanliness, and pollution-free; The product has the characteristics of high strength, light weight, corrosion resistance, beautiful appearance, long service life, and convenient maintenance and management.

sunrise brand combined FTP water tank is an alternative product to the old cement water tank. The FTP water tank fully meets the technical performance requirements of the National Construction Industry Bureau standard JC658.1-1997. The water tank has been tested by relevant national departments and meets the requirements of GB/T17219-98 "Safety Evaluation Specification for Drinking Water Transmission and Distribution Equipment and Protective Materials". The water quality meets the national "Drinking Water Standard" (GB5749-2006). Widely used in industrial and mining, enterprises and institutions, residential buildings, hotels, restaurants, and other buildings, as a water storage facility for drinking water, reclaimed water treatment, firefighting water, and other water uses.

Firstly, it should be noted that FTP is not glass or steel, but a type of fiber reinforced plastic. In professional terminology, FTP is referred to as composite material (full name is fiber reinforced resin based composite material). Fiber reinforced plastic consists of two parts: one is called the matrix, which is resin or plastic, and the other is the reinforcing material. In most cases, it is reinforced with fibers. To put it simply, we often add steel bars to cement concrete to improve its performance. The concrete acts as a matrix, and the steel bars inside are reinforcing materials. The raw materials used for reinforced plastics are different from reinforced concrete. Here is a brief introduction to reinforcing materials. In practical applications, there are various fibers that have been used for plastic reinforcement, such as glass fiber, carbon fiber, aramid fiber, metal fiber, etc. The widely used, economical, and practical one is glass fiber, while the other uses are very small and costly.

Instructions before ordering FTP water tanks

1. The FTP water tank is designed and manufactured to store room temperature drinking water. Please do not store hot water or other liquids (if you need to store hot water, please indicate before ordering, and we will provide you with a heating water tank);

2. The water tank capacity can be freely selected from 0.125M3 to 1000M3; The water tank adopts a standard plate combination method, and there are usually three types of standard plate specifications: 1000mm × 1000mm, 1000mm × 500mm, 500mm × 500mm, so the design size of the water tank cannot be continuously changed, and should be designed with 500mm as the modulus;

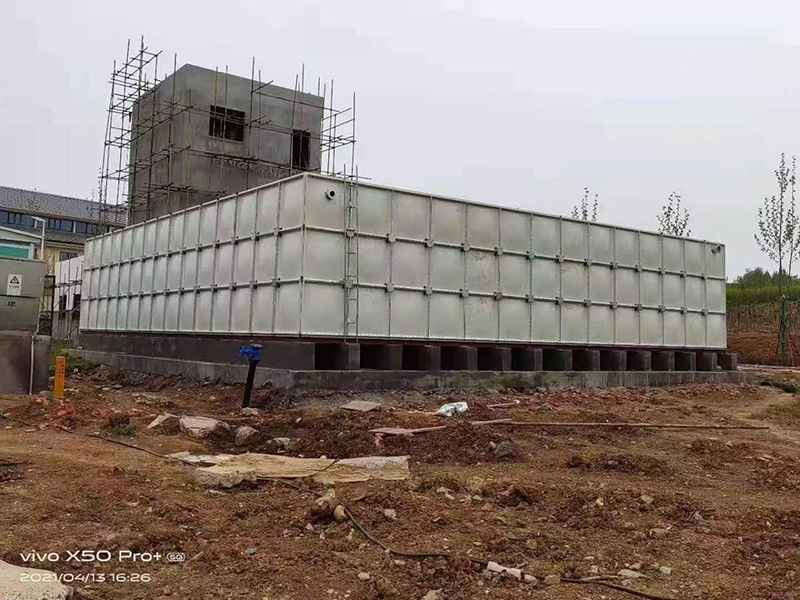

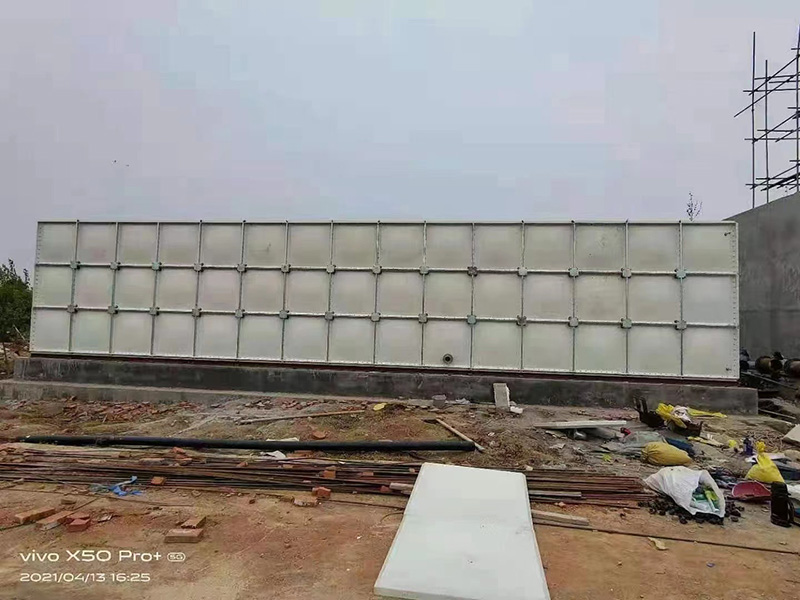

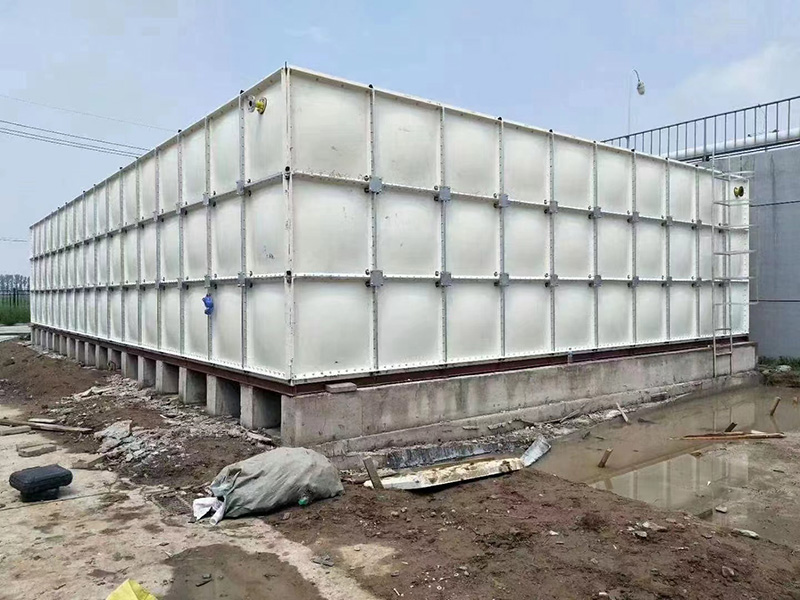

3. The bottom of the water tank should be equipped with a 300mm to 500mm high concrete foundation, and there should be no less than 500mm assembly and maintenance space around and at the top of the water tank; The direction of the concrete foundation should consider the convenience of sewage discharge according to the pipe;

4. The concrete foundation of the water tank shall be constructed by the water tank purchaser. The requirements for the construction error of the concrete foundation plane are: the allowable deviation of levelness shall not exceed 2mm, and the deviation of diagonal length shall not exceed 20mm;

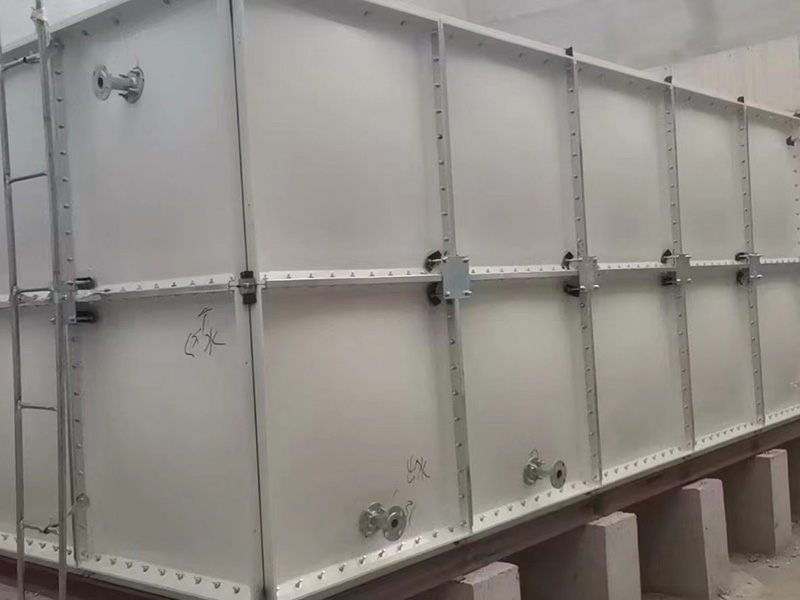

5. Standard accessories for water tanks include: inlet pipe flange, outlet pipe flange, overflow pipe flange, sewage pipe flange, vent hole, manhole, internal and external ladder, etc. The positions of all connecting pipe openings can be specified on site, but the relevant pipe diameter and quantity should be explained in advance when ordering by the user;

6. The insulation of the water tank can be made of foam materials that completely match the box or other materials required by the user as a whole. If there are special requirements, please notify separately in advance.

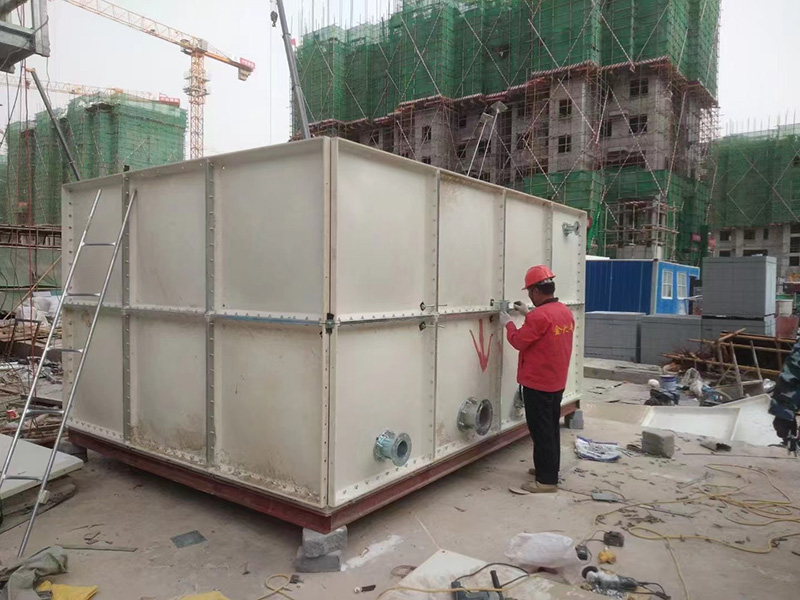

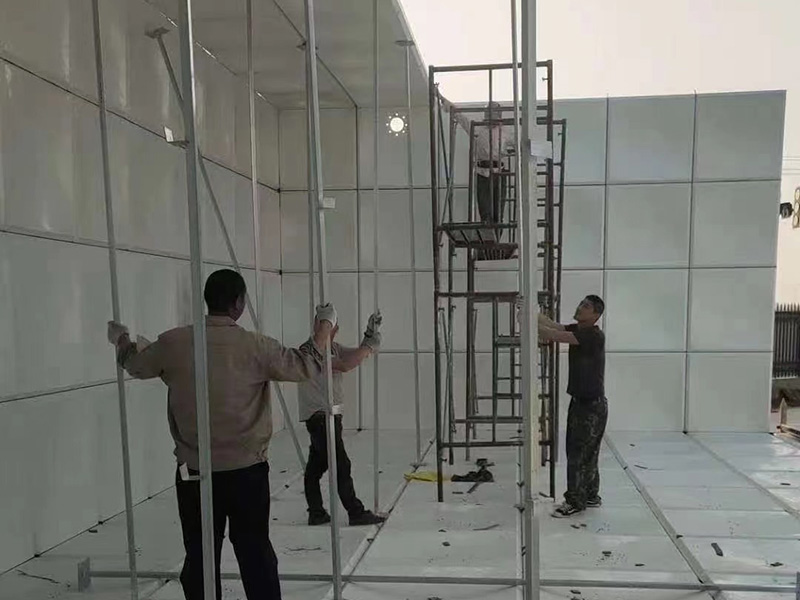

sunrise FTP Reinforced Plastic Company has emerged from the traditional production and processing enterprise model, adhering to the principle of continuously developing new products with high efficiency and quality. sunrise FTP Reinforced Plastic Company has an installation team composed of dozens of professional assembly and welding technicians, with rich on-site construction experience and exquisite skills, and has repeatedly shone brilliantly in the construction of large FRP fire water tanks, This provides a strong technical guarantee for the off-site quality management of the company's prefabricated FTP water tank.

sunrise FTP water tank adheres to the principle of "integrity as the foundation, customer-centered, quality for survival, and innovation for development", follows modern business philosophy, continuously develops and expands in scale, and improves production capacity. We have established a high-quality team with strong technical strength and unity and hard work. Our products are exported to Southeast Asia, Europe and America, and other countries. In recent years, our FTP water tank production has been exported to various parts of the country, The product has always been highly praised by domestic and foreign customers, and the quality is highly trusted by users.
